What We’re Building
The Loader Mini-App is the first user-facing touchpoint in Future Debrief. It’s a lightweight desktop application that answers a simple question: “I have a REP file — where do I want to put it?”
Right-click a REP file, select “Open with Debrief Loader”, and a wizard guides you through selecting a destination STAC store and plot. Behind the scenes, the app orchestrates three services: debrief-config tells it what stores you have, debrief-io parses your file, and debrief-stac writes everything with full provenance. The source file gets copied to assets, a provenance record links it all together, and you’re ready to analyse.
How It Fits
This is Stage 4 of our tracer bullet — the first point where all the foundational pieces come together in a real application. We’ve built the schemas (Stage 0), the STAC catalog service (Stage 1), the REP parser (Stage 2), and the configuration layer (Stage 3). The Loader is where a user finally does something with all that infrastructure.
It’s deliberately minimal. No map, no analysis, no fancy visualisations — just load data reliably. The VS Code extension (Stage 6) will handle the rest.
Key Decisions
-
Two-step wizard: Store selection first, then plot configuration. We considered single-screen layouts but found the branching logic (new plot vs. existing) cleaner in separate steps.
-
Tabbed second step: “Add to Existing” and “Create New” as tabs rather than radio buttons. Each mode has different UI needs (plot list vs. name/description form).
-
Python services via stdio: The Electron app spawns Python processes and communicates via JSON-RPC over stdin/stdout. No local HTTP server, no sockets — just simple, debuggable pipes.
-
react-i18next for i18n: We’re setting up string externalisation from day one. NATO interoperability demands multilingual support, and retrofitting i18n is painful.
-
Storybook for beta preview: Before we ship the full app, we’ll deploy UI components to GitHub Pages so stakeholders can kick the tyres.
The Loader Mini-App is now ready. It’s a cross-platform Electron application that turns “I have a data file” into “that data is stored with full provenance” — in under 30 seconds for typical REP files.
Right-click a REP file, select “Open with Debrief Loader”, and a two-step wizard guides you through the process. First, pick your destination STAC store. Then choose to create a new plot or add data to an existing one. Click Load, and the app orchestrates debrief-io for parsing, debrief-stac for storage, and records provenance linking your source file to every feature it produced.
For first-time users without any stores configured, the app guides you through creating a local STAC catalog. No configuration files to edit, no terminal commands — just pick a folder and you’re ready to go.
Screenshots

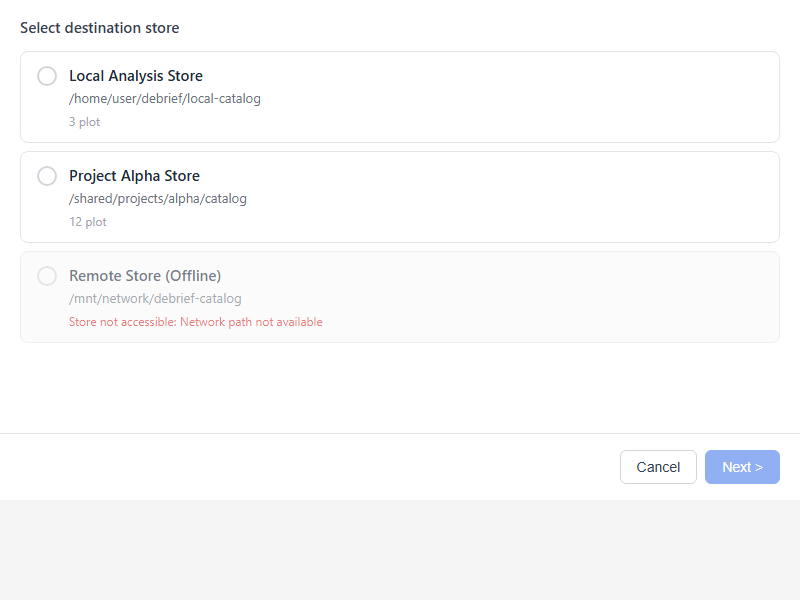

Store Selection
Choose from your configured STAC stores. Each card shows the store path and how many plots it contains.

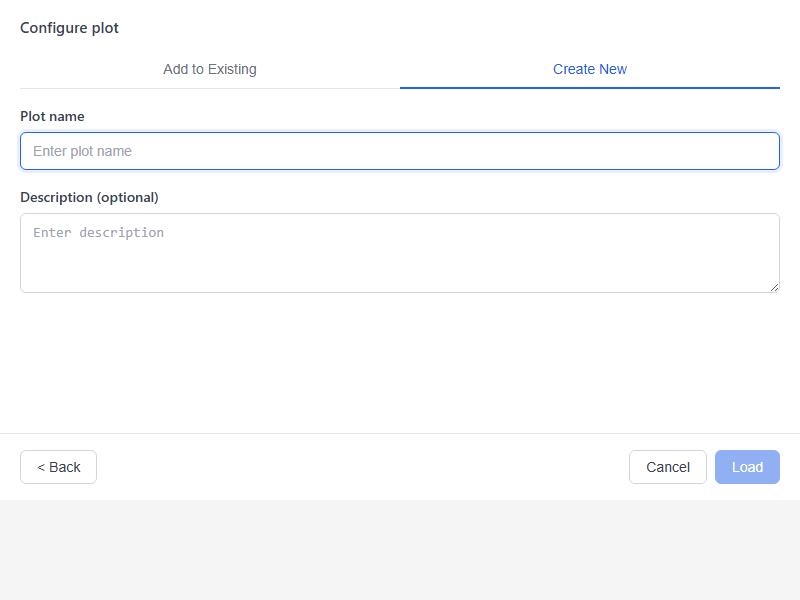

Plot Configuration
Create a new plot with a name and optional description. The tabbed interface lets you switch to “Add to Existing” if you want to append to an existing plot.
Processing & Success
Clear progress feedback during file parsing and catalog writes.

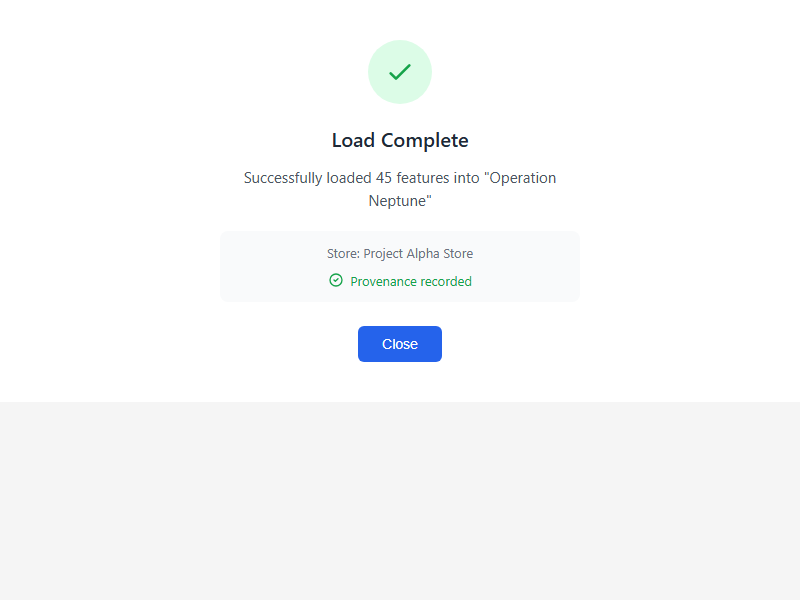

Confirmation with feature count and provenance status.
Technical Highlights
Three services, one flow: The app integrates debrief-config (where are my stores?), debrief-io (parse this file), and debrief-stac (write these features). Communication happens via JSON-RPC over stdio — simple, debuggable, and no network setup required.
I18N from day one: Every user-facing string is externalized via react-i18next. The Constitution mandates internationalization support for NATO interoperability, and retrofitting it later is painful. We got it right the first time.
Storybook for preview: All UI components are documented in Storybook with multiple states — empty stores, full stores, errors, success. Stakeholders can preview the UI before installing anything.
Graceful degradation: If Python services aren’t available, the app displays a clear error message explaining what’s missing and how to resolve it. No silent failures, no cryptic stack traces.
Lessons Learned
stdio is underrated: We initially considered socket-based IPC but JSON-RPC over stdin/stdout is remarkably robust. Process lifecycle is predictable, debugging is trivial (just pipe to a file), and there’s no port conflict headaches.
Wizard beats single-page: We prototyped a single-screen layout with all options visible. It felt overwhelming. The two-step wizard (store → plot) separates concerns and reduces cognitive load. The second step even changes its options based on the selected store.
Test mocking matters: Electron + React + Python services creates a testing challenge. Our solution: mock electronAPI in Vitest tests, mock services in Storybook, and save E2E tests for full integration. Each layer tests what it can control.
What’s Next
Stage 5 brings debrief-calc — context-sensitive analysis tools that operate on the data we’ve just learned to load. Time-range filtering, feature selection, and eventually full track analysis capabilities.
Stage 6 ties it all together with the VS Code extension — the primary workspace where analysts will spend their time. Map visualization, timeline scrubbing, and tool invocation all in one place.
→ See the implementation → Preview components in Storybook → Read the spec
