What We Built
The stakeholder demo from #189 has always relied on a hand-authored corpus of phrases. That works for a prepared walkthrough, but breaks the moment someone types something unexpected. Feature #190 adds a second transport behind #188’s LLMClient interface: a live path to Anthropic Claude that handles open-ended analyst queries – “Russian submarines after 2010”, “Exercise Trident Juncture ships” – without touching the fixture path or requiring any code change between queries.
The implementation is a Node stdlib proxy (live-proxy.mjs) that holds the API key in its environment and forwards requests. The browser never sees a credential. Drop in a live-config.json at the app root and restart the proxy – the demo activates live mode on reload. Remove the file, reload again, and it reverts cleanly to fixture-only behaviour with no stale state carried across.
The default remains fixture-only. A freshly-served bundle with no operator configuration makes zero outbound calls under any sequence of interactions. That was a hard requirement, and it is verified by a Playwright network spy across 11 driven phrases.
The Security Design
The credential isolation story is worth laying out explicitly, because it shaped several decisions.
Two-file config split. The API key lives in .env (proxy-side, gitignored). The browser fetches live-config.json (also gitignored), which holds the proxy URL, model name, timeout, and call cap – but no credentials. A CDN or public cache can mirror live-config.json without exposing anything sensitive.
Loopback-only proxy by default. The proxy binds to 127.0.0.1:8081. Enabling a non-loopback bind requires two deliberate opt-ins: PROXY_ALLOW_REMOTE=true in the environment and an X-Proxy-Token header matching a token printed to stderr at startup. Accidentally binding to 0.0.0.0 cannot turn the proxy into an open relay.
gitleaks CI gate. A gitleaks.toml config runs on every PR, scanning dist/, apps/nl-demo/dist/, and the committed worktree against sk-ant-* and ANTHROPIC_API_KEY= patterns. The allowlist covers .env.example placeholders only. This PR returned 0 leaks across 2,913 files.
Per-session usage cap. The client enforces a configurable call ceiling (default 50). Call 51 short-circuits before any fetch is issued, surfaces a “reload to reset” banner, and emits a TransportCallRecord with outcome: "usage-cap-reached" – verifiable in the stub test suite without a live key.
Screenshots

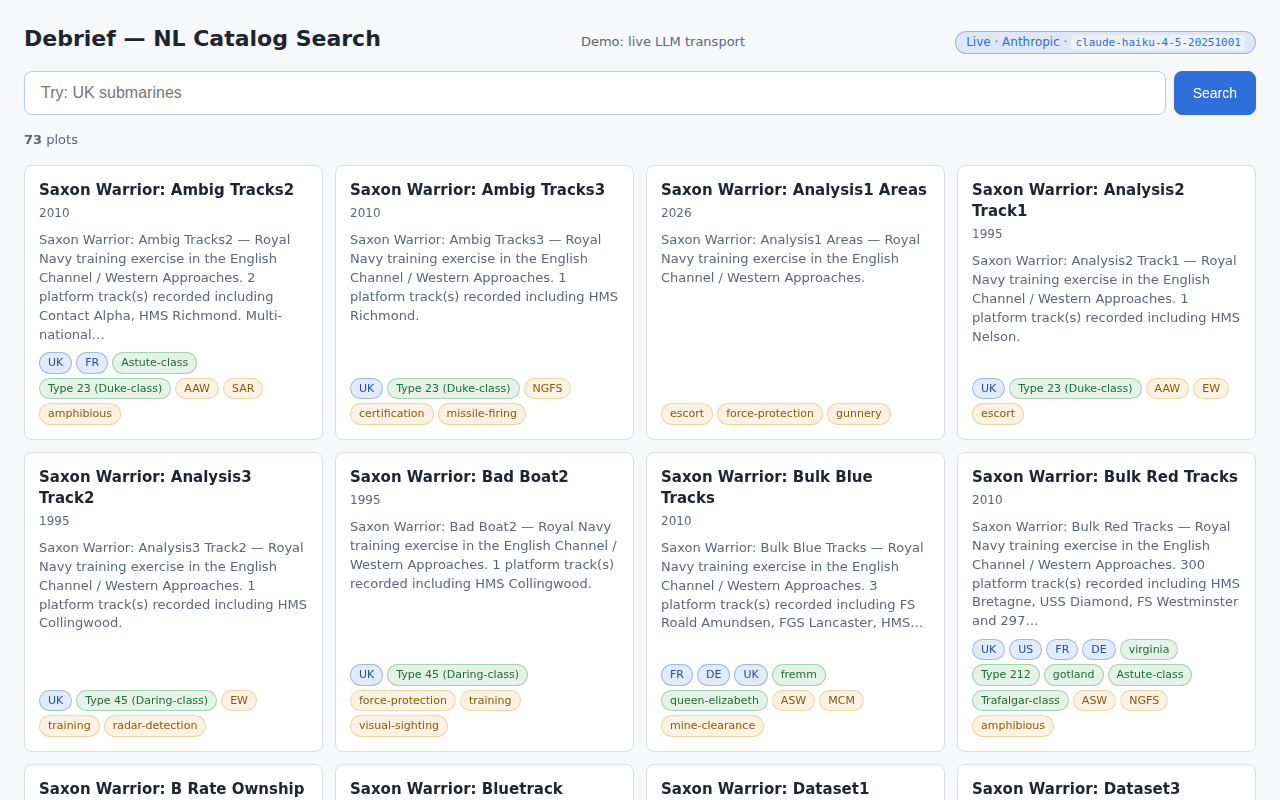

The indicator appears only when live-config.json validates and the boot-time health check succeeds. If the proxy is down, the demo falls back to fixture mode and the indicator is absent.

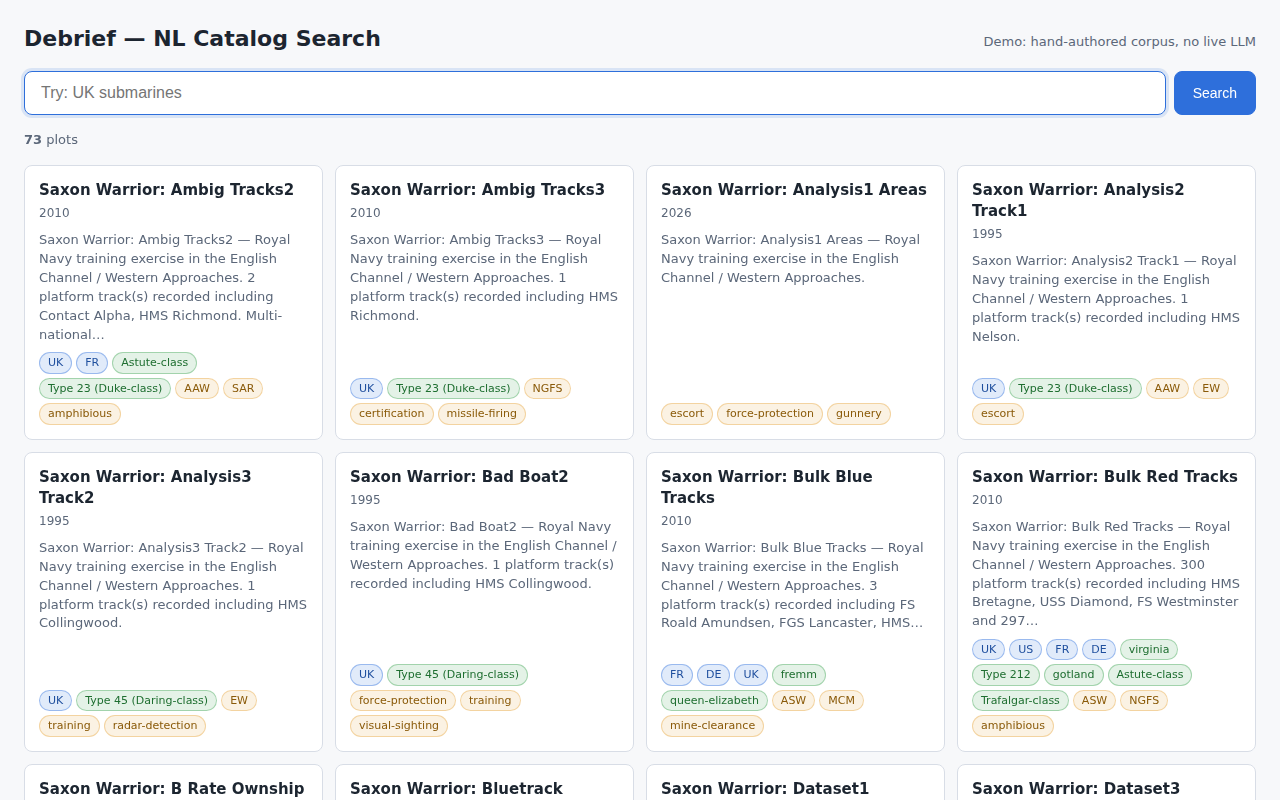

Fixture mode. No indicator, distinct subtitle – the operator cannot mistake one mode for the other.
Each of the 7 LiveTransportErrorReason classes plus the malformed-response path from #188 maps to a distinct banner. The query input stays enabled on every failure branch – a live failure does not kill the demo session.
By the Numbers
| Feature-specific vitest tests | 38 |
| Feature-specific Playwright E2E | 8 |
| Total suite passing | 3,255 |
LiveTransportErrorReason classes |
7 |
| gitleaks findings | 0 / 2,913 files |
| New runtime dependencies | 0 |
Lessons Learned
Zero new runtime dependencies was achievable and worth it. The proxy is Node stdlib (node:http, node:https). The client is browser-native fetch + AbortController. No provider SDK. This keeps the implementation portable across providers and removes an entire dependency-audit surface.
The cancelPending() supersession case is subtle. When a second phrase is submitted while a first live call is still in flight, the older call needs to resolve as reason: "transport-error" / message: "superseded" rather than land out of order. Writing the test first – slow call 1, fast call 2, assert only call 2 reaches the consumer – made the right implementation obvious.
Stub mode deserves its own fixture file. Scripting all 7 failure classes via live-proxy.mjs --stub live-stub.json in Playwright’s webServer array lets the full E2E suite run in CI without any network or credential dependency. The stub file is a committed artefact; CI behaviour is deterministic across branches.
live-config.json placement matters. Putting it at the app root rather than inside data/ keeps it outside sync-data.mjs’s regeneration cycle. An early draft had it inside data/, and a pnpm sync-data run would have silently wiped it.
What’s Next
The live transport is a transport – it does not yet record successful live-generated responses back into the fixture corpus. A “record live to fixture” workflow would let the corpus grow organically from real usage. That is tracked separately and out of scope here.
The #189 demo also still shows the off-corpus banner when the proxy is absent and the phrase is unknown. With live mode available, the UX question becomes: should fixture-mode users see a softer message pointing them toward live mode, or is the current banner still the right call? That is worth revisiting once we have some real usage data.
