Shipped: Properties Panel — feature & sub-feature editing

	Before #192	After #192
Editable surface	Catalog metadata and plot-level fields only	Catalog, plot-level, per-feature, and per-vertex across every geometry in the plot
Selection emitters	Single-select only on the map; the Layers panel and modifier keys did nothing	Single-select plus Ctrl/Cmd multi-select on both the map and the Layers panel
Read-only plots	Edits accepted in the form, then the save silently failed	A pre-flight banner across every panel mode, plus a post-write notice if the filesystem rejects the write anyway
Override revert	Re-type the auto-derived value by hand and hope it matched	One-click revert next to any overridden field, with the auto-derived value shown alongside
Annotation vertices	No metadata anywhere — polygon, line, and point vertices were geometry-only	label, tags, and note on any vertex via the same editor used for track points

What We Built

Until now, the only way to annotate a single point on a track — or correct the nationality on one contact, or label a single vertex of an exclusion zone — was to open the underlying JSON. The Properties Panel handled the plot as a whole, and stopped there. With #192 the same panel becomes the editing surface for whatever the analyst has selected: a feature, a single vertex on that feature, several features compared side by side, or the whole plot. Clicking a track point lets you mark it as the moment of intercept and attach a note; clicking a polygon vertex lets you tag it the same way; Ctrl-clicking two contacts on the map shows a read-only summary of where they agree and where they differ.

The change is deliberately larger than it looked at first. After a Spec Navigator review I pulled four things out of the “out of scope” pile that the original plan had quietly assumed away. Multi-select emission, because the multi-select summary mode was unreachable without it — a documented capability that nothing in the running app could actually trigger. Read-only plot detection, because a save against a locked catalog item was failing silently and writing a provenance entry for a save that never happened, which is the exact failure mode the constitution forbids. Per-field revert, because shipping per-platform overrides without a way to undo them was half a feature. And sub-feature editing for non-track annotations, because designing a vertex-metadata schema slot now and then designing another one for polygons later would have been an obvious mistake.

How It Fits

This sits on top of #447’s Properties Panel shell and consumes the per-platform override fields from #181, the structured vertex-path convention from #053, the annotation geometries from #093, and the auto-derived values from #135. Nothing new joins the dependency graph — no new packages, no new runtime libraries, no new Zustand stores. The staging buffer lives in React state inside the panel’s host controller, the read-only signal lives on the existing session-state plot slice as isReadOnly plus a readOnlyReason, and the selection model stays the existing features slice — the map and Layers panel click handlers grow modifier flags but the shape of selection is unchanged. The headline schema change is one LinkML class (VertexMetadata) and one slot (vertex_metadata) added to BaseFeatureProperties, which means every feature class that inherits from it — TrackProperties plus the seven annotation classes — picks up the slot for free. The address inside each entry is a structured string path following #053’s selection-path convention: positions/N for tracks, rings/R/vertices/V for polygons, vertices/N for lines and multipoints, vertex/0 for points.

Key Decisions

• Staging buffer is panel-local React state, not a new Zustand slice. The first plan had me adding a cross-package store; the Spec Navigator review pointed out that nothing outside the panel reads it, and that introducing shared state for a panel-private concern would be the wrong call. It now lives where the panel can see it and nowhere else.
• The staging buffer, the save→flush wiring, and the per-save provenance call site are net-new in #192, not extensions of #447. The original plan claimed they were inherited from the plot-editor; an Article I.3 audit showed they weren’t. Misclassifying them risked shipping the silent-save bug into the per-feature path too, so I added an integrated save-path Vitest specifically to close that hole.
• Read-only detection combines a writer capability report with post-write escalation. The writer’s CapabilityReport.persistent flag drives the pre-flight banner. If a save still fails with ReadOnlyFilesystemError, EACCES, or EPERM, the panel escalates to read-only after the fact and surfaces a notice. Where the catalog lock and the filesystem permission disagree, the most restrictive wins.
• One shared VertexMetadata class, addressed by a structured string path. The alternative was a per-geometry class hierarchy, which would have meant generating four near-identical types and four mode-resolver branches. A single class with a path slot kept the schema sparse (vertices with no metadata add nothing to the saved file), kept the editor branch-free (the same label/tags/note form regardless of geometry kind), and meant the mode resolver only needs to recognise a vertex path — not decode it.
• PropertiesForm gets a mode prop and three new sibling components — FeatureEditorMode, SubFeatureEditorMode, MultiSelectSummaryMode — rather than a single super-component that branches internally. Each mode is independently storyable, independently testable, and independently rerenderable when the selection changes.
• Multi-select emission is upstream of the panel. The map’s onSelect and the Layers panel’s row click handler grow modifier flags; the panel itself learns nothing new about how the selection was built. This keeps the panel’s mode-resolution logic pure: it reads the selection and renders, and it never asks where the selection came from.
• Vertex re-mapping under geometry mutation is explicitly deferred. If a later feature edits a polygon’s vertices, the rules for how vertex_metadata entries follow insertions and deletions will be defined alongside that feature, not pre-emptively here. Annotating today is in scope; reshaping is not.

Screenshots

The Properties Panel renders one of four modes based on what’s selected. Below: feature mode (with the per-platform override chip and the revert affordance), sub-feature mode on a track point and on a polygon vertex (cross-geometry hero — same form, different address), the multi-select read-only summary, and the read-only banner that fires either pre-flight or after a permission-denied save.

Feature mode	Sub-feature mode (track point)

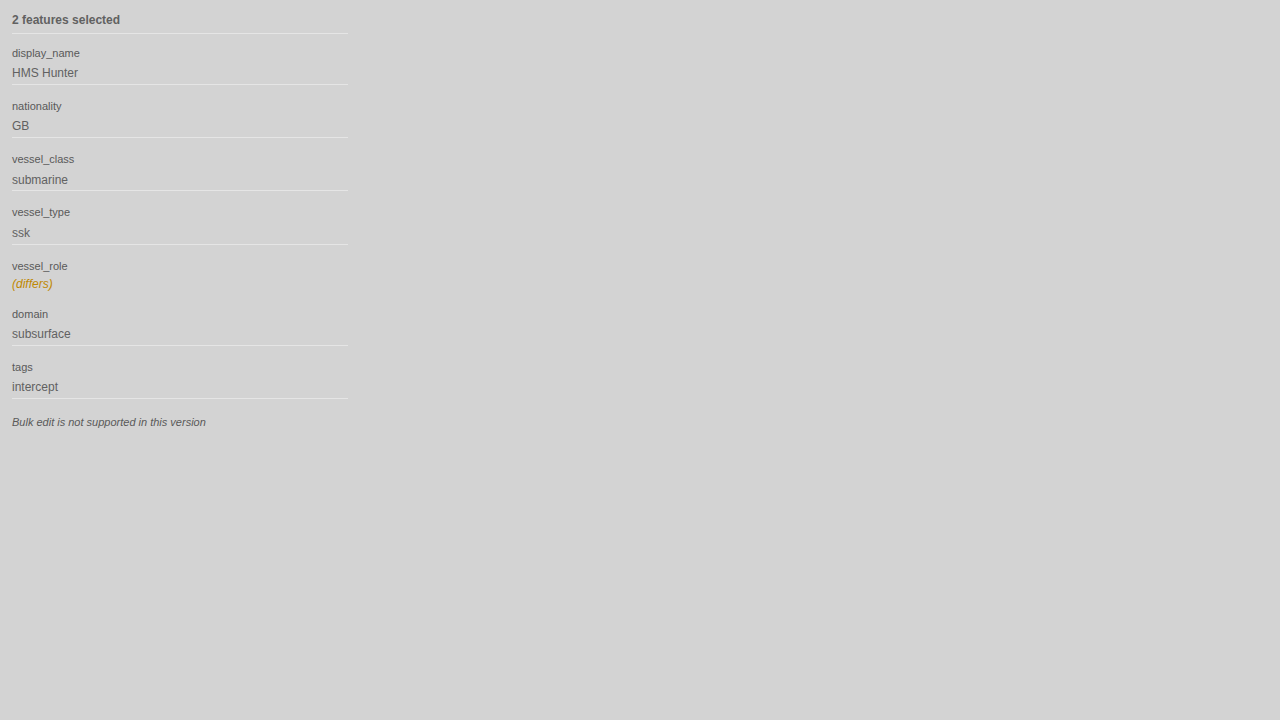

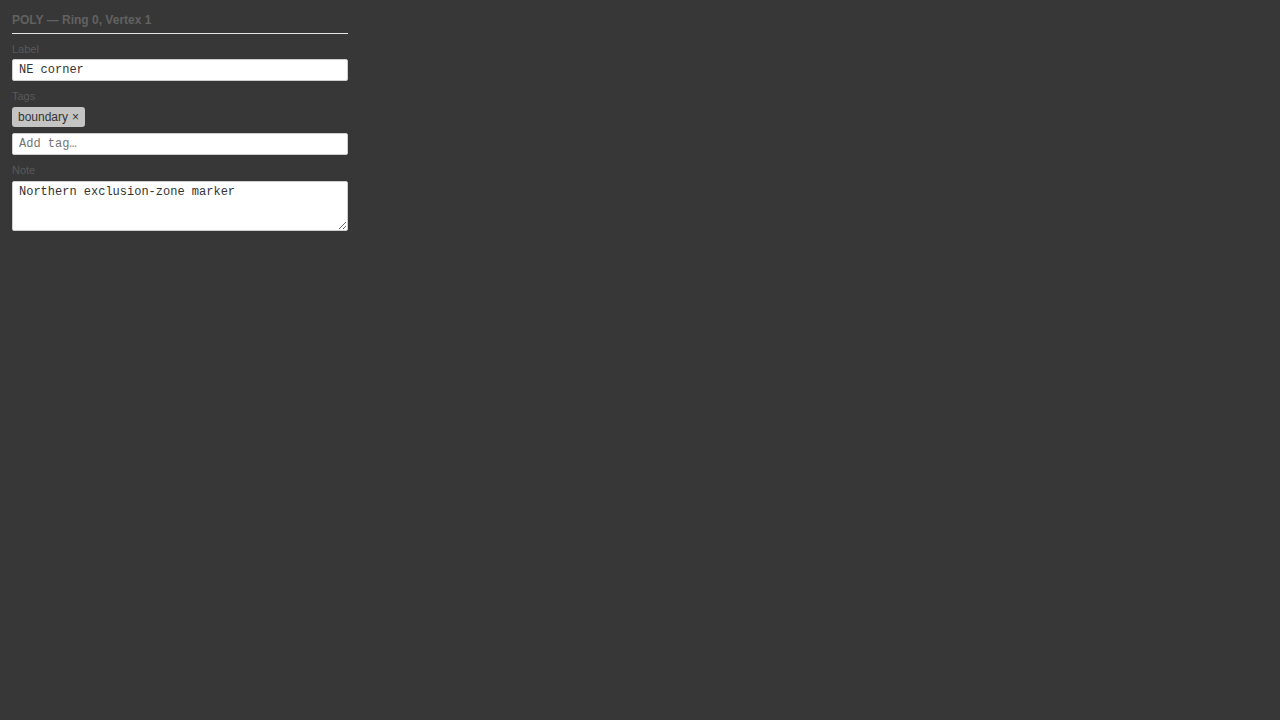

Sub-feature mode (polygon ring vertex) — same form, different address	Multi-select summary

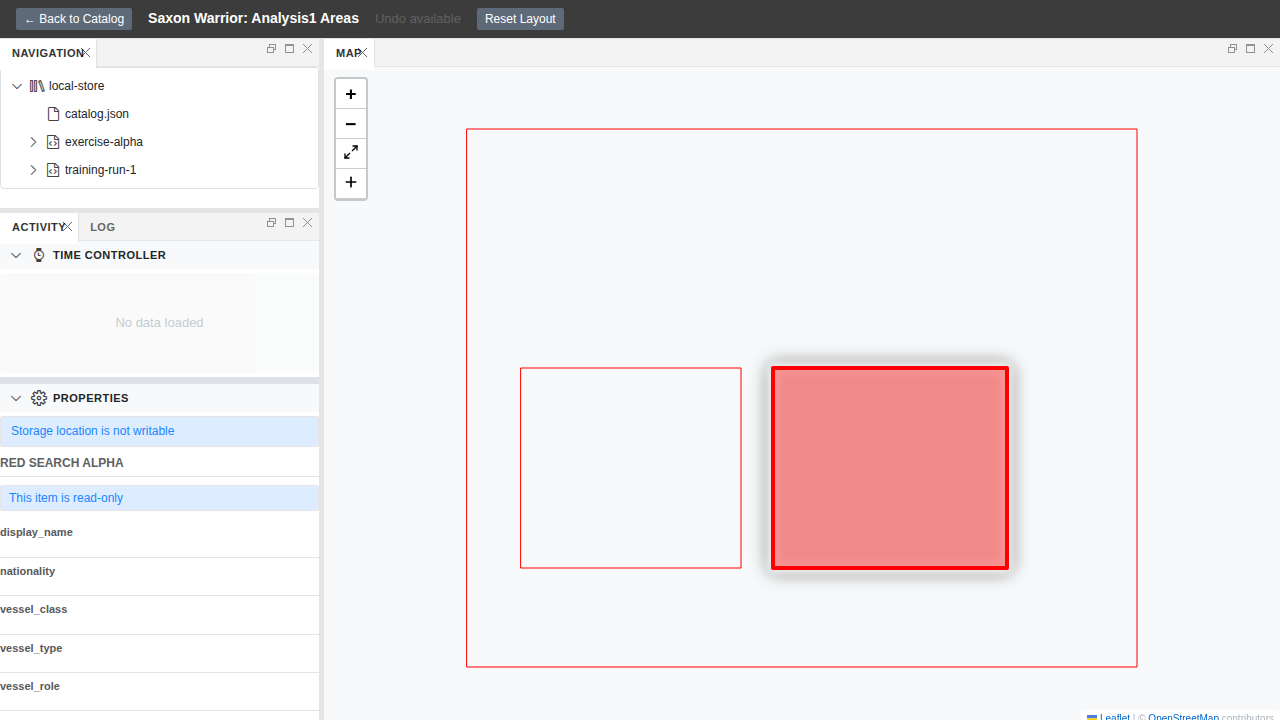

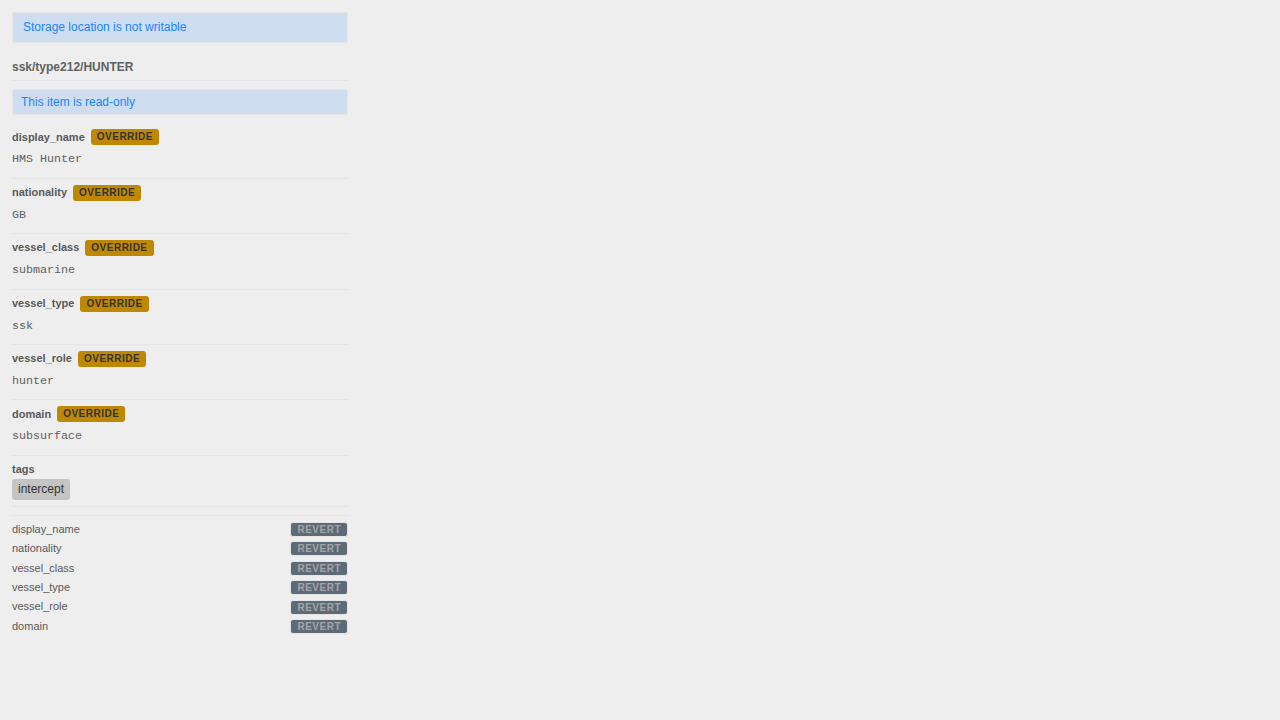

Read-only banner alone	Read-only in the live web-shell (banner + disabled inputs)

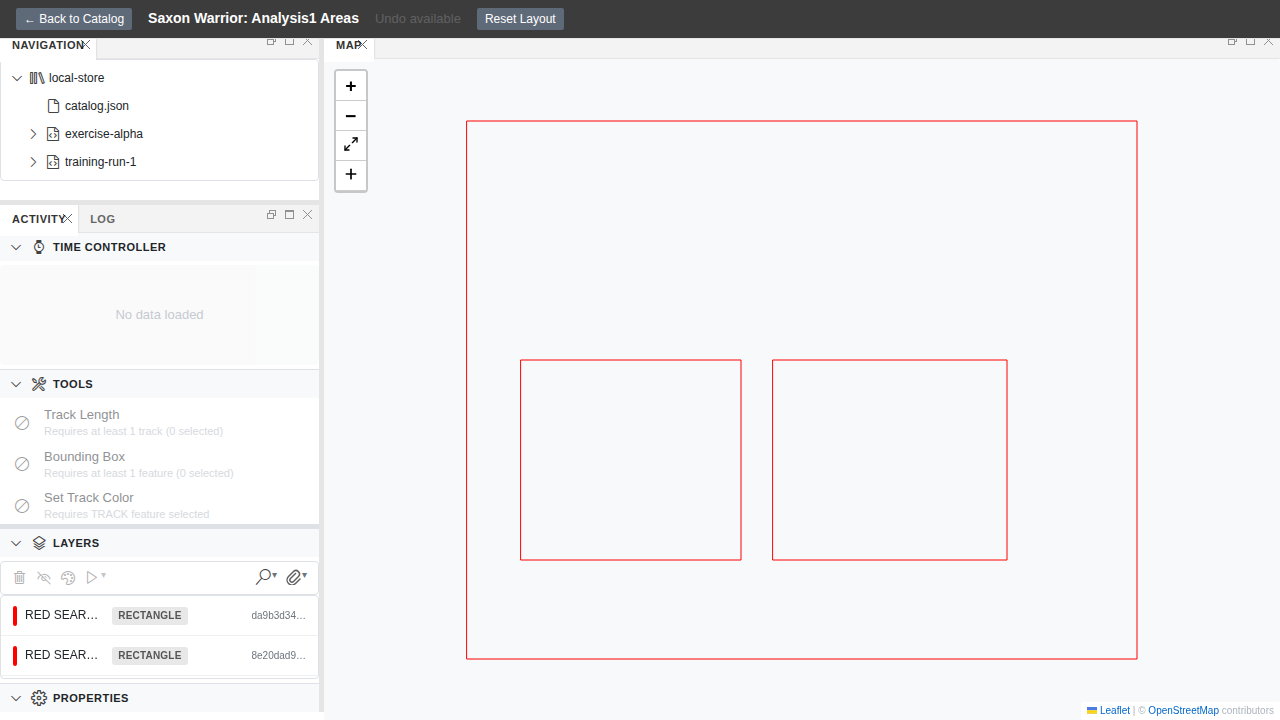

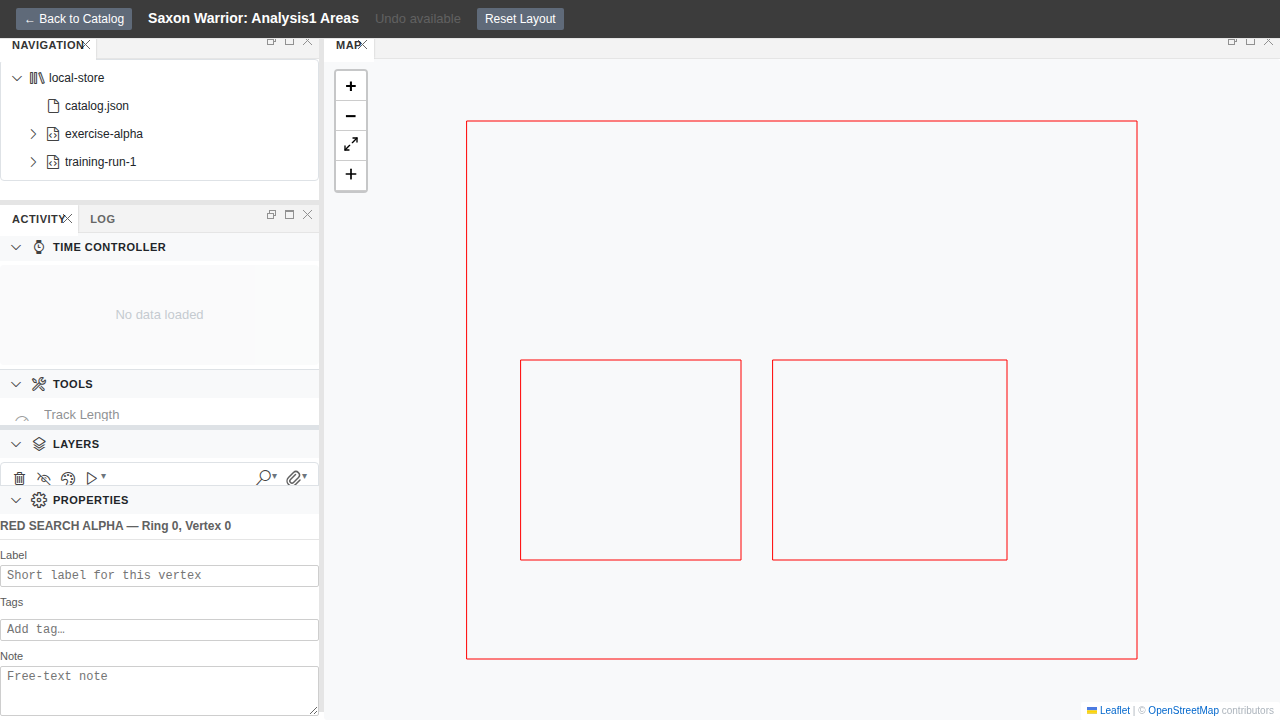

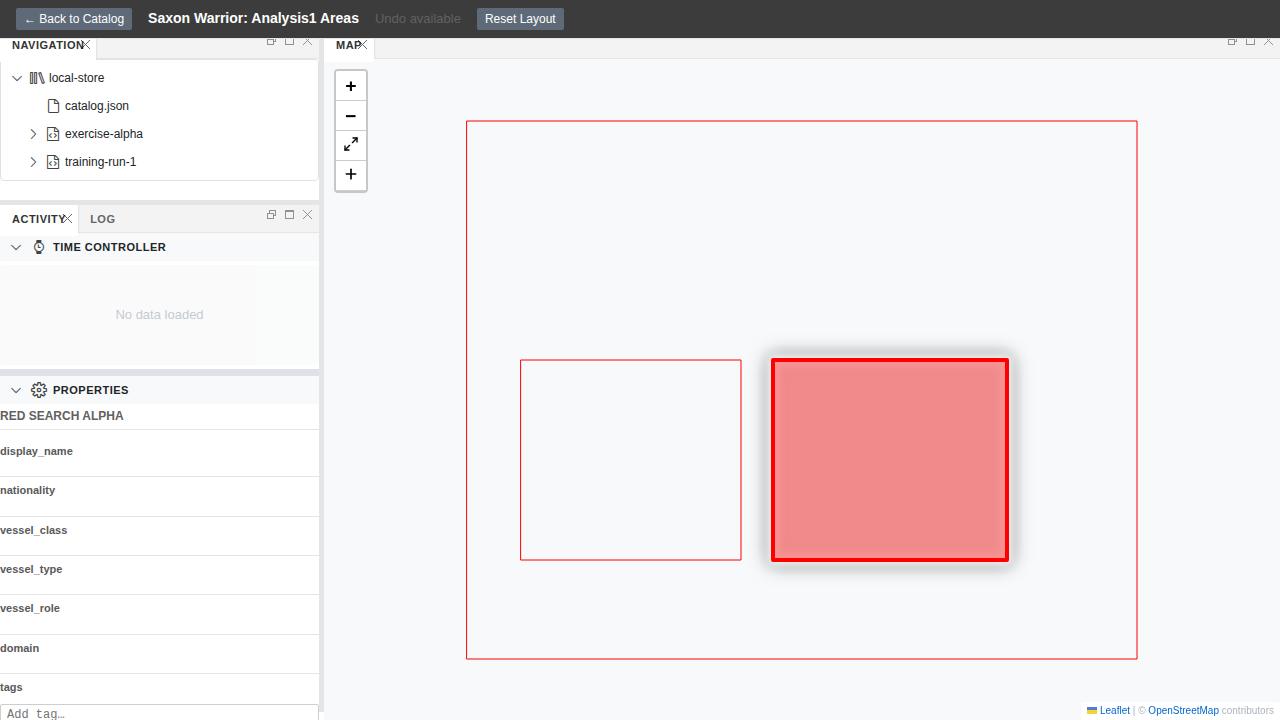

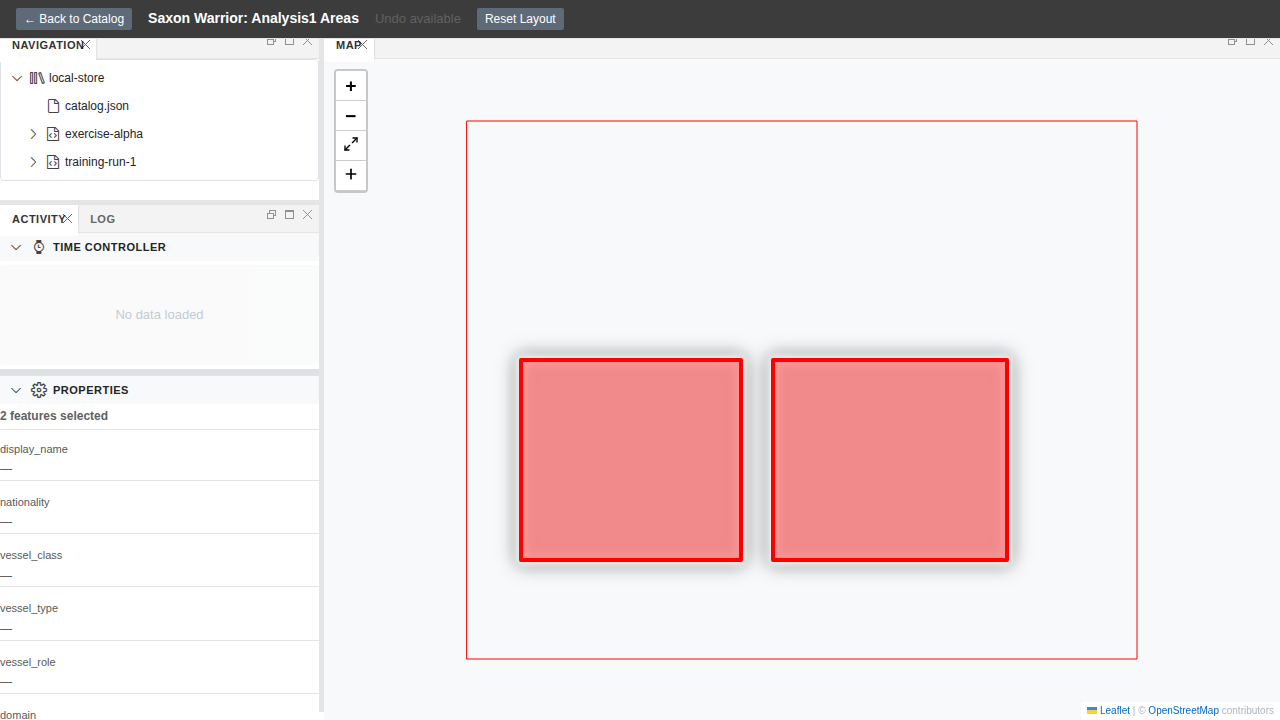

The mode-swap frame strip captures the four key states the dispatcher cycles through. (The cloud environment has no ffmpeg, so the spec’s planned GIF is rendered as a four-frame sequence the PR description displays side-by-side.)

By the Numbers

User stories	7 (4× P1, 3× P2)
LinkML classes added	1 (VertexMetadata)
LinkML slots added	1 (vertex_metadata: VertexMetadata[] on BaseFeatureProperties)
Concrete subclasses that inherit the new slot	13
New runtime dependencies	0
Schema pytest cases (full suite / new in #192)	916 / 53
Component-library Vitest cases (full suite / new in #192)	2 250 / ~300
Session-state Vitest cases (full suite / new in #192)	675 / 14
VS Code extension Vitest cases	780 (no regressions)
Web-shell Playwright cases (all #192 specs)	42
Storybook screenshot captures	7 (3 themes for the feature mode + 4 mode-specific)
Total tests passed at HEAD	4 670
Total tests failed	0
Breaking API changes	1 (MapView.onSelect signature — same prop name, new payload shape)
Plot-editor #447 regression count	0 (49/49 tests pass unchanged)

Lessons Learned

• Audit “we inherit that from #447” claims before designing on top of them. The original plan said the save path, the provenance call site, and the staging buffer were #447 plumbing reused as-is. The Spec Navigator review showed that wasn’t true — the save path landed but the staging buffer and the provenance call site were never wired. I’d been planning to lean on infrastructure that didn’t exist. The integrated save-path Vitest (saveSession-integration.test.ts) is the test that closes that gap; it would not have existed without the second review pass.
• A breaking signature change to a high-traffic prop is cheap if the package boundary is right. MapView.onSelect going from (featureId, event) to ({ target, modifier, shift }) rippled through one VS Code call-site and two web-shell call-sites, the FeatureList convergence, two Storybook stories, and one selection-sync test. It took the Phase 5 agent under 20 minutes from first edit to all-green. The same change spread across packages owned by different teams would have cost a week.
• Browser-safe subpath exports are worth setting up before they bite. Adding @debrief/session-state/browser for the components package was a 30-line change that took an hour to discover (the regression was invisible until the VS Code webview pretest fell over with Could not resolve "fs/promises"). The web-shell was already aliasing the package to a local shim for the same reason — that pattern should be a project-wide convention, not a per-app workaround.
• Inlining a JSON registry into a component is fragile, even when it’s expedient. The platform registry lookup for the revert affordance reads shared/data/platform-registry.json. The @debrief/data package uses node:fs, which doesn’t work in the webview. The Phase 8 work mirrored the JSON inline; this is a known follow-up. The right fix is a @debrief/data/browser subpath that ships the JSON bundled at build time.

What’s Next

• Wire a Save action in the host UI. The staging buffer’s applyEditsToFeatures → saveSession → appendProvenance glue is shipped; the panel currently never invokes it from a visible control. The follow-up backlog item will surface a Save button in the panel header.
• Add @debrief/data/browser to remove the inline platform-registry mirror in FeatureEditorMode.tsx.
• Vertex re-mapping under geometry mutation. The current sparse-path keying means that if a polygon shrinks under the analyst, vertex_metadata entries whose path no longer resolves are skipped. The next feature to edit polygon vertices should define the re-mapping rules at the same time.
• Convert the workflow PNG sequences into GIFs once ffmpeg is on the CI image. The capture spec is already in place — only the post-processing step is missing.
