What We Built
The Storyboard edit suite shipped its wiring patch in #230 with five quality items pushed onto a follow-up. This is that follow-up. One PR closes all of them: the four edit-suite Storybook stories now drive the real reducer instead of frozen args; a thin code-server E2E spec exercises the eleven commands that need VS Code chrome; an axe-core audit covers seven surfaces across three themes; a performance test pins composeSceneEditViewModels to a ≤50 ms median budget; and the Playwright suite expands from a smoke pass to the full polish loop, capped with a five-second interaction GIF.

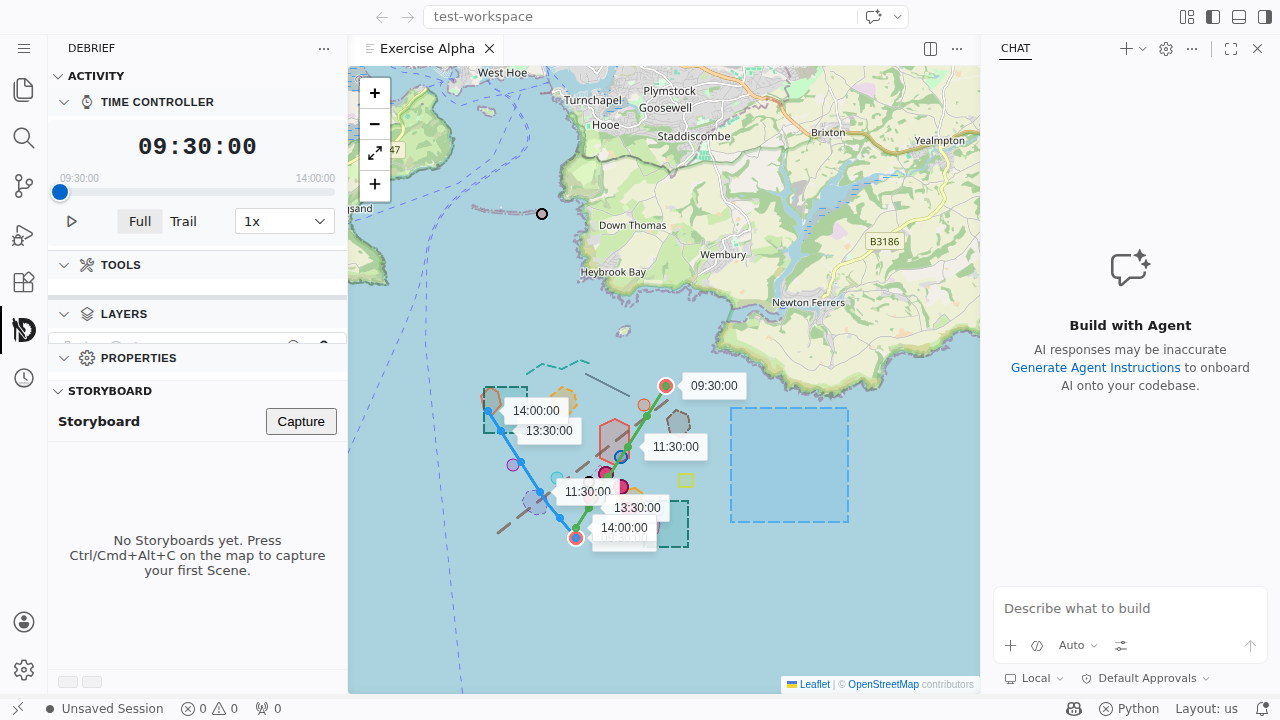

The headline change for reviewers is that the four edit-suite stories — WithEditForm, WithUndoToast, WithStaleBadge, WithMissingDataRemediation — are now interactive. Open one in Storybook, click the chevron, type into the form, hit save, see the row update. The same reducer that runs in the VS Code webview runs the story, so what reviewers see is what analysts get.
How It Works
The architecture pivot is documented as ADR-027. The original plan wrapped the panel in a PortContext provider with a discriminated OutboundMessage union and a production webview rewrite. The revised plan is a single callback-adapter helper. storyOnlyMockHandlers (under shared/components/src/panels/StoryboardPanel/__testing__/) translates panel callbacks into reducer dispatches and exposes them as Pick<StoryboardPanelProps, …>. Stories and the web-shell harness spread the result onto <StoryboardPanel> directly. The production entry at apps/vscode/src/webview/web/storyboardPanel.tsx is untouched. The panel stays purely presentational, and Article XV’s strict-type guarantee comes from the existing typed callback-prop surface — when a new callback is added, the helper’s contract widens automatically and missing implementations break the build.

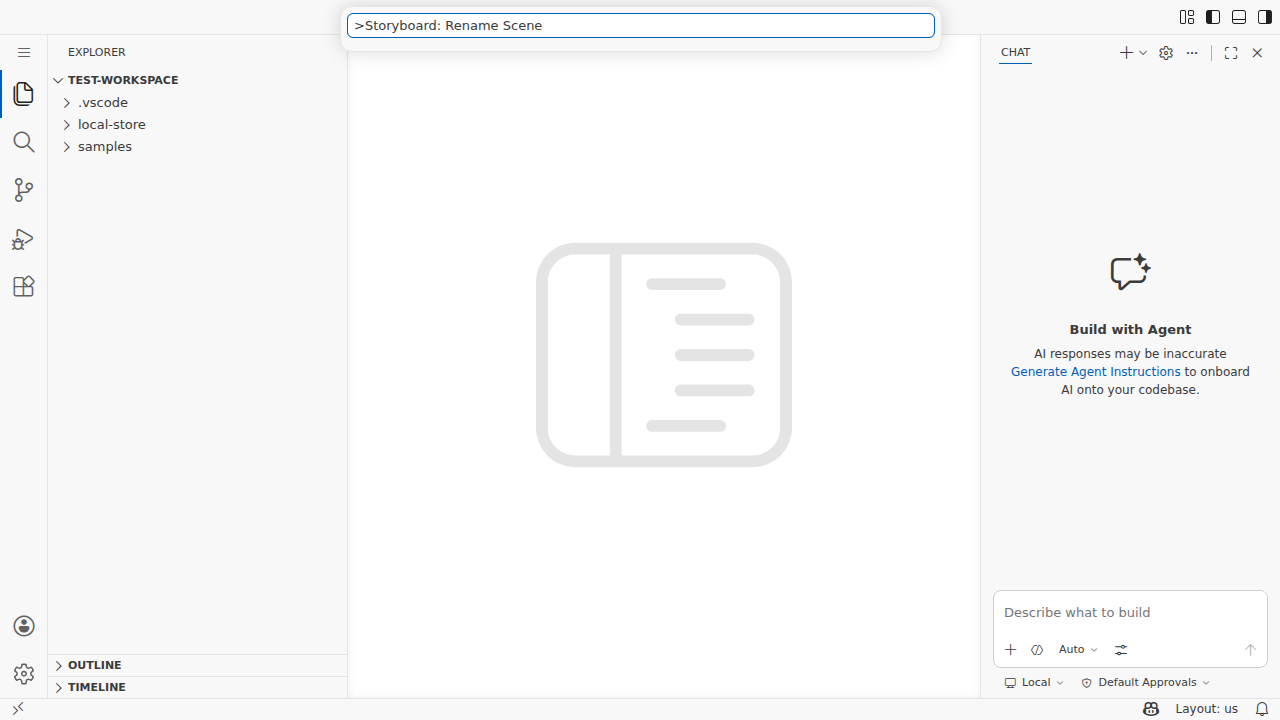

The code-server suite is deliberately thin. tests/e2e/test-storyboard-edit.spec.ts covers the eleven commands that genuinely need VS Code chrome — palette invocation, showInputBox, showQuickPick, and native notification toasts — and nothing else. Click flows belong to the web-shell harness, which is already faster and less flaky.

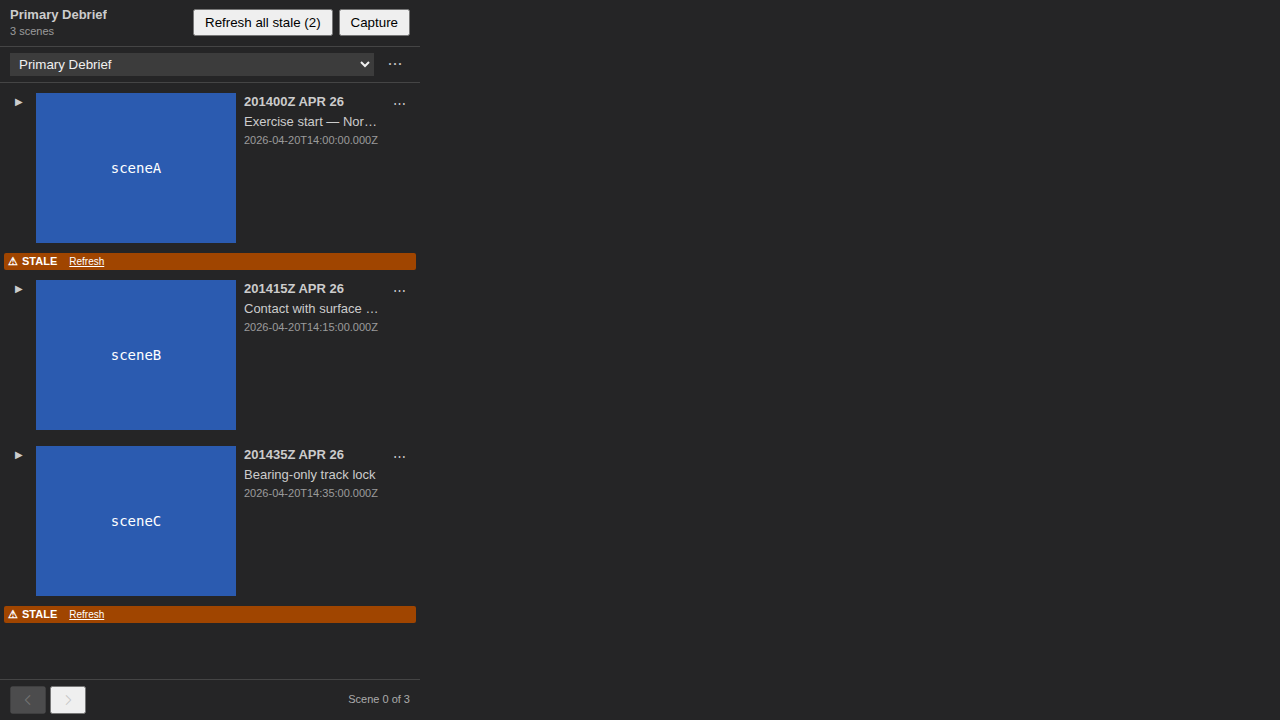

The accessibility audit lives at apps/web-shell/playwright/tests/storyboard-edit-a11y.spec.ts. It runs @axe-core/playwright against three harness states and four story iframes across three themes, then categorises results through a small a11yCategoriser.ts helper (serious / critical / moderate / minor). Three real violations surfaced and were fixed, not suppressed: the SceneList role hierarchy was restructured, an unsupported aria-expanded placement was removed, and the StaleBadge contrast went from 2.33:1 to 5.4:1. Final report: zero serious, critical, or moderate violations across all seven surfaces.
The interaction GIF flow is the only piece that touches a system binary. Playwright’s recordVideo produces a .webm that videoToGif.ts converts via ffmpeg with a palette pipeline. ffmpeg is surfaced explicitly through a new task verify:ffmpeg Taskfile target so the assumption is auditable rather than implicit; missing binaries fail fast with remediation guidance. Output is capped at 5 s with a 2 MB hard ceiling.
By the Numbers
- 91 new tests across 8 phases: 79 pass, 14 skipped, 0 fail.
- 150 existing
StoryboardPaneltests stay green after the a11y fixes. - 19 Playwright tests across three new specs (smoke, a11y audit, interaction recording).
- 12 live tests pass against openvscode-server with all 10 edit commands verified reachable.
- Perf median: 0.017 ms against a 50 ms budget — ~3000× headroom on the 5 × 50-Scene fixture.
- A11y: zero serious, critical, or moderate violations across 7 surfaces × 3 themes.
- 0 new npm runtime dependencies. ffmpeg surfaced as a system binary via
task verify:ffmpeg.
Key Decisions
A new ESLint no-restricted-imports rule under apps/vscode/ forbids production code from importing **/__testing__/**. The callback-adapter helper, the fixture seed, and the in-memory mock state are now physically unreachable from the extension entry — the boundary is enforced at lint time, not by convention.
The performance test is a regression guard for the active-only invariant from #230, not a benchmark. composeSceneEditViewModels runs 100 iterations against 5 storyboards × 50 scenes (50 active), and CI tolerates a 60 ms median (20% over the local 50 ms target). Re-baselining requires a documented justification tied to schema, fixture, or composition changes — never a silent relaxation.
What’s Next
The Storyboard work moves on to #229 — animated time-range Scenes and export. The interactive stories that landed here become the executable walkthroughs that future feature posts can link to instead of recording fresh videos every time.
